Orchestrate dbt with Airflow on Spark: A Complete Guide

This guide demonstrates how to orchestrate scalable dbt pipelines on Ilum's Apache Spark cluster using Flusso d'aria Apache e Astronomer Cosmos. You will learn how to build a robust medallion architecture (Bronze → Silver → Gold) utilizing Kubernetes-native compute for efficient data transformation. We will cover automatic DAG generation, data quality testing, and incremental processing strategies.

mancia

For a comprehensive deep-dive into the architecture, benefits, and strategic considerations of running dbt on Spark with Airflow, see our detailed blog post: Orchestrate dbt on Spark with Airflow: A Guide to Modern Data Engineering on Ilum.

Prerequisites for Airflow and dbt on Ilum​

  • Ilum version 6.6.2 or later
  • Airflow enabled with the 3.1.1-dbt immagine
  • Spark SQL (Thrift Server) or Scintilla Connetti Abilitato
  • Basic familiarity with dbt and Airflow concepts

dbt-Airflow-Spark Architecture Overview​

The integration combines four key components:

ComponentTechnology
Compute EngineApache Spark on Ilum (Kubernetes-native)
Data Modelingdbt-spark (dbt-core + Spark adapter)
OrchestrazioneApache Airflow 3.1 with KubernetesExecutor
DAG GenerationAstronomer Cosmos

Flusso di lavoro: Git repository → gitSync → Airflow → Cosmos (auto-generates DAG) → Spark SQL / Spark Connect → Ilum Spark Cluster

Quick Start: Deploying dbt Pipelines​

1. Enable Airflow with dbt Support​

Install Ilum with Airflow and dbt pre-configured:

helm install
helm install ilum ilum/ilum \
  --mettere ilum-hive-metastore.enabled=vero \
  --mettere ilum-core.metastore.enabled=vero \
  --mettere ilum-core.metastore.type=alveare \
  --mettere ilum-core.sql.enabled=vero \
  --mettere ilum-sql.enabled=vero \
  --mettere airflow.enabled=vero \
  --mettere airflow.images.airflow.tag=3.1.1-dbt
Pre-loaded Example

When using the 3.1.1-dbt image tag, the complete dbt project and DAG described in this guide are automatically pre-loaded into the internal Gitea repository and synced to Airflow. You can trigger the example pipeline immediately after installation.

2. Access Airflow​

Navigate to the Airflow UI via the Ilum console. The default credentials are typically amministratore:admin.

3. Verify the Connection​

Starting from Ilum 6.6.2Le spark_thrift_default connection is automatically configured. Verify it exists:

Admin → Connections → Search for spark_thrift_default

If missing, create it manually:

FieldValore
Connection IDspark_thrift_default
Connection TypeScintilla o spark_sql
Hostilum-sql-thrift-binary..svc.cluster.local
Port10009

4. Trigger the DAG​

Find ilum_dbt_thrift_pipeline in the Airflow UI and trigger it manually. Monitor the Graph View to see the auto-generated task dependencies.

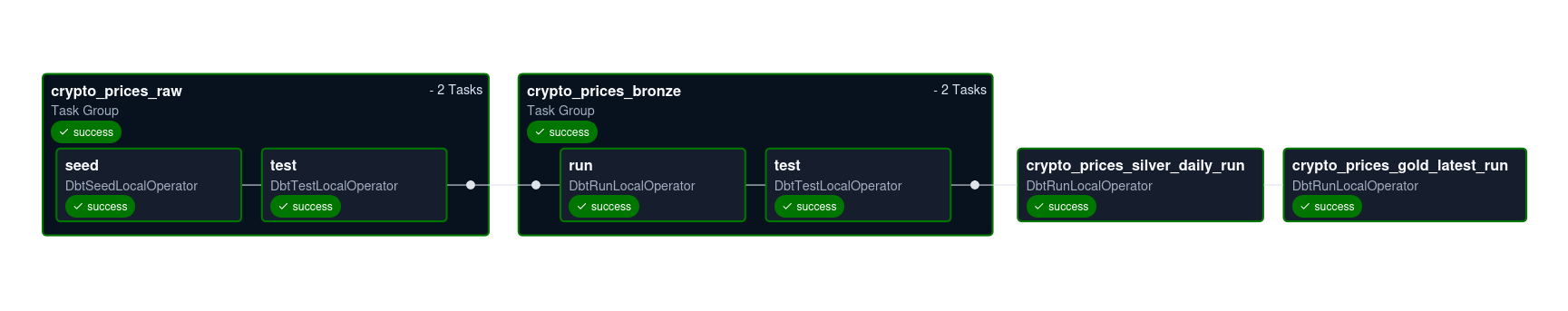

Airflow DAG Graph generated by Astronomer Cosmos showing dbt model dependencies The Airflow DAG automatically generated by Astronomer Cosmos, reflecting the dbt model dependencies.

Project Structure​

The dbt project follows a standard medallion architecture:

Directory Structure
ilum_dbt_project/
├── dbt_project.yml
├── packages.yml
├── seeds/
│   └── crypto_prices_raw.csv
└── models/
    ├── bronze/
    │   └── crypto_prices_bronze.sql
    ├── silver/
    │   └── crypto_prices_silver_daily.sql
    ├── gold/
    │   └── crypto_prices_gold_latest.sql
    └── schema.yml

dbt Configuration​

dbt_project.yml​

The central configuration file defines project metadata, paths, and layer-specific settings:

dbt_project.yml
nome: "ilum_dbt_project"
Versione: "1.0.0"
config-version: 2

profile: "ilum_dbt_project"   # must match ProfileConfig.profile_name

model-paths: ["models"]
seed-paths: ["seeds"]
macro-paths: ["macros"]
test-paths: ["tests"]

models:
  ilum_dbt_project:
    +materialized: tavolo
    bronze:
      +tags: ["bronze"]
    silver:
      +tags: ["silver"]
    gold:
      +tags: ["gold"]

seeds:
  ilum_dbt_project:
    +column_types:
      dattero: dattero
      symbol: corda
      price_usd: double
      volume_usd: double
      market_cap_usd: double
    crypto_prices_raw:
      +pre-hook:
        - "{{ drop_this_seed() }}"

Key features:

  • Tag enable selective execution: dbt run --select tag:gold
  • Column types ensure correct Spark table schemas
  • Pre-hook drop_this_seed() provides idempotent seed loading for demos

Medallion Architecture Layers​

Bronze Layer: Type Normalization​

File: models/bronze/crypto_prices_bronze.sql

Converts raw seed data into typed, normalized tables with incremental processing:

models/bronze/crypto_prices_bronze.sql
{{ config(
    Materializzata='incremental',
    unique_key=['date', 'symbol']
) }}

select
  cast(dattero come dattero)         come dattero,
  upper(symbol)              come symbol,
  cast(price_usd come double)  come price_usd,
  cast(volume_usd come double) come volume_usd,
  cast(market_cap_usd come double) come market_cap_usd
Da {{ riferimento('crypto_prices_raw') }}

{% se is_incremental() %}
where dattero > (select max(dattero) Da {{ this }})
{% Fine %}

Benefici:

  • Only processes new records after initial load
  • Reduces compute costs for large datasets

Silver Layer: Data Enrichment​

File: models/silver/crypto_prices_silver_daily.sql

Adds 7-day moving averages using Spark window functions:

models/silver/crypto_prices_silver_daily.sql
{{ config(Materializzata='tavolo') }}

select
  dattero,
  symbol,
  price_usd,
  volume_usd,
  market_cap_usd,
  medio(price_usd) over (
    partition presso symbol
    order presso dattero
    rows tra 6 preceding e current fila
  ) come price_usd_7d_avg,
  medio(volume_usd) over (
    partition presso symbol
    order presso dattero
    rows tra 6 preceding e current fila
  ) come volume_usd_7d_avg
Da {{ riferimento('crypto_prices_bronze') }}

Gold Layer: Business-Ready Views​

File: models/gold/crypto_prices_gold_latest.sql

Produces analytics-ready data showing the latest 30 days per symbol:

models/gold/crypto_prices_gold_latest.sql
{{ config(Materializzata='tavolo') }}

con ranked come (
  select
    *,
    row_number() over (
      partition presso symbol
      order presso dattero desc
    ) come rn
  Da {{ riferimento('crypto_prices_silver_daily') }}
)

select
  dattero,
  symbol,
  price_usd,
  price_usd_7d_avg,
  volume_usd_7d_avg,
  market_cap_usd
Da ranked
where rn <= 30

Data Quality Tests​

Define tests in models/schema.yml to create quality gates:

models/schema.yml
Versione: 2

seeds:
  - nome: crypto_prices_raw
    columns:
      - nome: dattero
        tests: [not_null]
      - nome: symbol
        tests: [not_null]
      - nome: price_usd
        tests: [not_null]

models:
  - nome: crypto_prices_bronze
    descrizione: "Bronze layer - typed and normalized crypto prices."
    columns:
      - nome: dattero
        tests: [not_null]
      - nome: symbol
        tests: [not_null]
      - nome: price_usd
        tests: [not_null]

In Airflow: Cosmos converts each test into a separate task that blocks downstream models if it fails.

Generating Airflow DAGs with Cosmos​

File: dags/ilum_dbt_thrift.py

dags/ilum_dbt_thrift.py
Da dataora importazione dataora, timedelta
importazione os
Da airflow.configuration importazione conf
Da cosmos importazione DbtDag, ProjectConfig, ProfileConfig, ExecutionConfig
Da cosmos.profiles importazione SparkThriftProfileMapping

DAGS_FOLDER = conf.Ottieni("core", "dags_folder")
DBT_PROJECT_PATH = os.sentiero.join(DAGS_FOLDER, "ilum_dbt_project")
DBT_BIN = "/home/airflow/.local/bin/dbt"

profile_config = ProfileConfig(
    profile_name="ilum_dbt_project",
    target_name="prod",
    profile_mapping=SparkThriftProfileMapping(
        conn_id="spark_thrift_default",
        profile_args={
            "schema": "predefinito",
            "threads": 4,
        },
    ),
)

dbt_dag = DbtDag(
    project_config=ProjectConfig(
        dbt_project_path=DBT_PROJECT_PATH,
    ),
    profile_config=profile_config,
    execution_config=ExecutionConfig(
        dbt_executable_path=DBT_BIN,
    ),
    dag_id="ilum_dbt_thrift_pipeline",
    schedule="@daily",
    start_date=dataora(2024, 1, 1),
    catchup=False,
    default_args={
        "owner": "data-team",
        "retries": 2,
        "retry_delay": timedelta(minutes=5),
    },
)

How it works:

  • SparkThriftProfileMapping uses the Airflow connection spark_thrift_default
  • Cosmos scans the dbt project and auto-generates tasks for each model, seed, and test
  • Dependencies mirror dbt's ref() relationships

Thrift vs Spark Connect​

AspettoThrift ServerScintilla Connetti
EndpointCentral SQL server (shared)Per-job endpoint (isolated)
Use caseMultiple tools sharing one endpointIsolated compute per project
ProtocolJDBC/ThriftgRPC (native Spark API)
ConnectionStable service nameDynamic job-based URL

Tracking Data Lineage and Dependencies​

Once the pipeline runs successfully, tables are stored in the Hive Metastore and accessible across Ilum components:

  • Ilum SQL: Query tables directly
  • Quaderni Jupyter: Analyze data interactively
  • Processi Spark: Use as input for other pipelines
  • Lineage View: Visualize table dependencies in Ilum UI

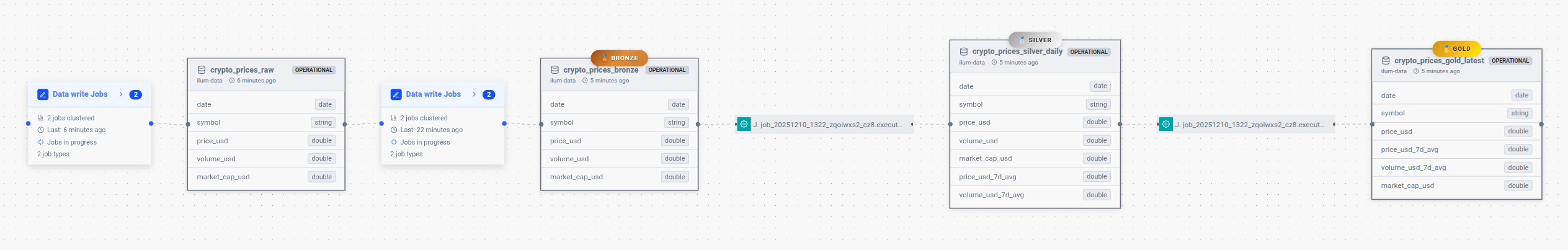

Ilum data lineage view showing medallion architecture Figure 2: The Ilum Data Lineage view visualizing the full medallion architecture (Bronze → Silver → Gold) and table dependencies.

Vantaggi principali​

CaratteristicaBenefit
No dbt CloudFully open-source, no subscription costs
Medallion patternClean data architecture (bronze → silver → gold)
Incremental modelsProcess only new data, reduce compute costs
Quality gatesdbt tests block downstream if data fails
KubernetesExecutorEach task isolated in separate pod
gitSyncCode changes auto-deployed from Gitea
Auto DAG generationCosmos creates tasks from dbt models automatically
Full lineageTrack model dependencies in Airflow UI and Ilum
