Create a Local Ilum Cluster for Spark Development

A step-by-step guide on how to deploy a local development cluster in Ilum.

Why Create a Local Ilum Cluster?

Ilum enables multi-cluster architecture management from a single central control plane, automating complex configurations. You only need to register your cluster in Ilum and configure basic networking. To learn more about cluster management concepts in Ilum, read the architecture overview.

This guide covers the creation of a local cluster—a simulation environment launched inside the ilum-core server. This is ideal for testing Ilum's cluster management capabilities without requiring external Kubernetes infrastructure.

Demo

Qui puoi vedere una demo su come aggiungere un cluster locale a Ilum Guida a schermo intero

Step-by-Step Deployment Guide

Step 1: Navigate to Cluster Creation

• Vai alla pagina Ammassi section in the Workload menu.
• Fare clic sull'icona Nuovo cluster bottone.

Step 2: Configure General Settings

• Name & Description: Choose a descriptive name and description to help your team understand the cluster's purpose.
• Cluster Type: Set the cluster type to Locale.
• Spark Version: Select the appropriate Spark image version.

The Spark version is defined by the container image used for Spark jobs. Ilum uses optimized images with pre-installed dependencies.

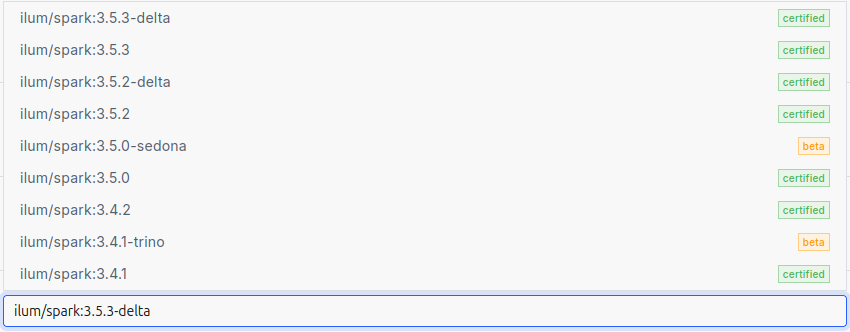

Here is a list of available Spark images:

Step 3: Define Spark Configurations

Any Spark configurations specified at the cluster level will be automatically applied to every job deployed on that cluster.

Why use this? It eliminates repetitive configuration. For instance, if you use Apache Iceberg as your Spark catalog, you can configure it once globally here. All Ilum jobs on this cluster will inherit these settings.

Step 4: Integrate Object Storage (S3/MinIO)

Ilum uses a default cluster storage to manage job files (both user code and Ilum internal artifacts). You can connect various storage providers: S3, GCS, WASBS, or HDFS.

In this guide, we will configure an S3 bucket using the MinIO storage that comes deployed by default with the Ilum cluster.

1. Fare clic sull'icona "Aggiungi spazio di archiviazione" bottone.
2. Name & Type: Specify a name and select S3 as the storage type.
3. Benna scintilla: Impostare su ilum-files. This is the main bucket for Ilum Job files (default in the local MinIO).
4. Bucket di dati: Impostare su ilum-files. This is required for using Tavoli Ilum (Spark format).
5. Endpoint & Credentials:
   • Endpoint: ilum-minio:9000
   • Access Key: minioadmin
   • Secret Key: minioadmin (These are the default credentials for the internal MinIO instance.)
6. Click the "Invia" bottone.

You can add multiple storage backends; Ilum Jobs will be configured to interact with all of them.

Step 5: Finalize Local Cluster Resources

Navigate to the local cluster configurations. Here, use the slider to allocate the number of Java threads used for the local cluster simulation.

Finally, click the Invia button to create your cluster.

Step 6: Verify Deployment with a Test Job

To ensure your local cluster is functioning correctly, create and run a simple Spark job.

1. Navigate to Cluster: Go to the Ammassi section and select your new local cluster.
2. Create Service: Click New Service. Enter a name and select Codice as the type.
3. Launch Editor: Find your new service in the list and click Eseguire.
4. Run Spark Code: In the code panel, paste the following Scala code.

This script creates a simple DataFrame and writes it to the S3 storage we configured earlier.

Test Spark Job

// 1. Create sample data
val dati = Seq(("Alice", 29), ("Bob", 35), ("Cathy", 23))

// 2. Convert to DataFrame with defined columns
val Df = scintilla.createDataFrame(dati).toDF("nome", "age")

// 3. Define output path (pointing to our MinIO bucket)
val s3Path = "s3a://ilum-files/output"

// 4. Write data to S3 in CSV format
Df.scrivere.format("csv").modo("sovrascrivere").save(s3Path)

5. Clic Eseguire.

If the job completes successfully, your local Ilum cluster is correctly configured and ready for development!
